AVEKON COMPACT PRE-TREATMENT
WASTEWATER TREATMENT
AVEKON Compact Pre-Treatment System
Compact, chemical-free physical pre-treatment system developed for efficient removal of TSS, sand, oil, grease and floating solids from industrial and domestic wastewater streams.
System Overview

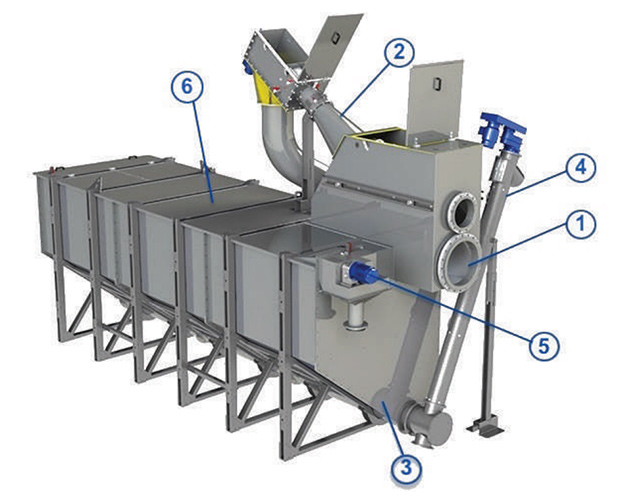

The AVEKON Compact Pre-Treatment System is designed to perform multiple treatment functions within a single integrated structure.
The system combines screening, sedimentation and flotation principles to maximize separation efficiency while minimizing installation footprint.
Collected waste is separated and directed to appropriate disposal processes while clarified wastewater continues to downstream treatment units.
Technical Advantages
Oil & Grease Removal
Efficient separation of oil, grease and suspended solids.
Compact Footprint
Integrated design minimizes installation area.
Low Maintenance
Simple operation and minimal maintenance requirements.
Fast Installation
Quick and straightforward installation process.
High Efficiency
Reliable separation and treatment performance.
Energy Saving
Low operational energy consumption.
Capacity Range
| Model | Capacity | Width | Length | Total Height |
|---|---|---|---|---|
| AVEKON-40 | 20-40 m³/h | 110 cm | 200 cm | 360 cm |
| AVEKON-80 | 40-80 m³/h | 110 cm | 400 cm | 360 cm |
| AVEKON-120 | 90-120 m³/h | 140 cm | 400 cm | 390 cm |
| AVEKON-200 | 120-200 m³/h | 140 cm | 600 cm | 390 cm |
| AVEKON-280 | 200-280 m³/h | 140 cm | 800 cm | 390 cm |
| AVEKON-400 | 280-400 m³/h | 190 cm | 1000 cm | 420 cm |
| AVEKON-600 | 500-600 m³/h | 190 cm | 1200 cm | 420 cm |
Applications
Industrial Facilities
- Organized Industrial Zones
- Industrial Production Plants
- Manufacturing Facilities
Municipal Applications
- Domestic Wastewater Treatment Plants
- Municipal Treatment Facilities
Tourism Facilities
- Hotels
- Resorts
- Holiday Villages
Commercial Facilities
- Business Centers
- Large Commercial Complexes
