MODEPO MODULAR STORAGE SYSTEMS

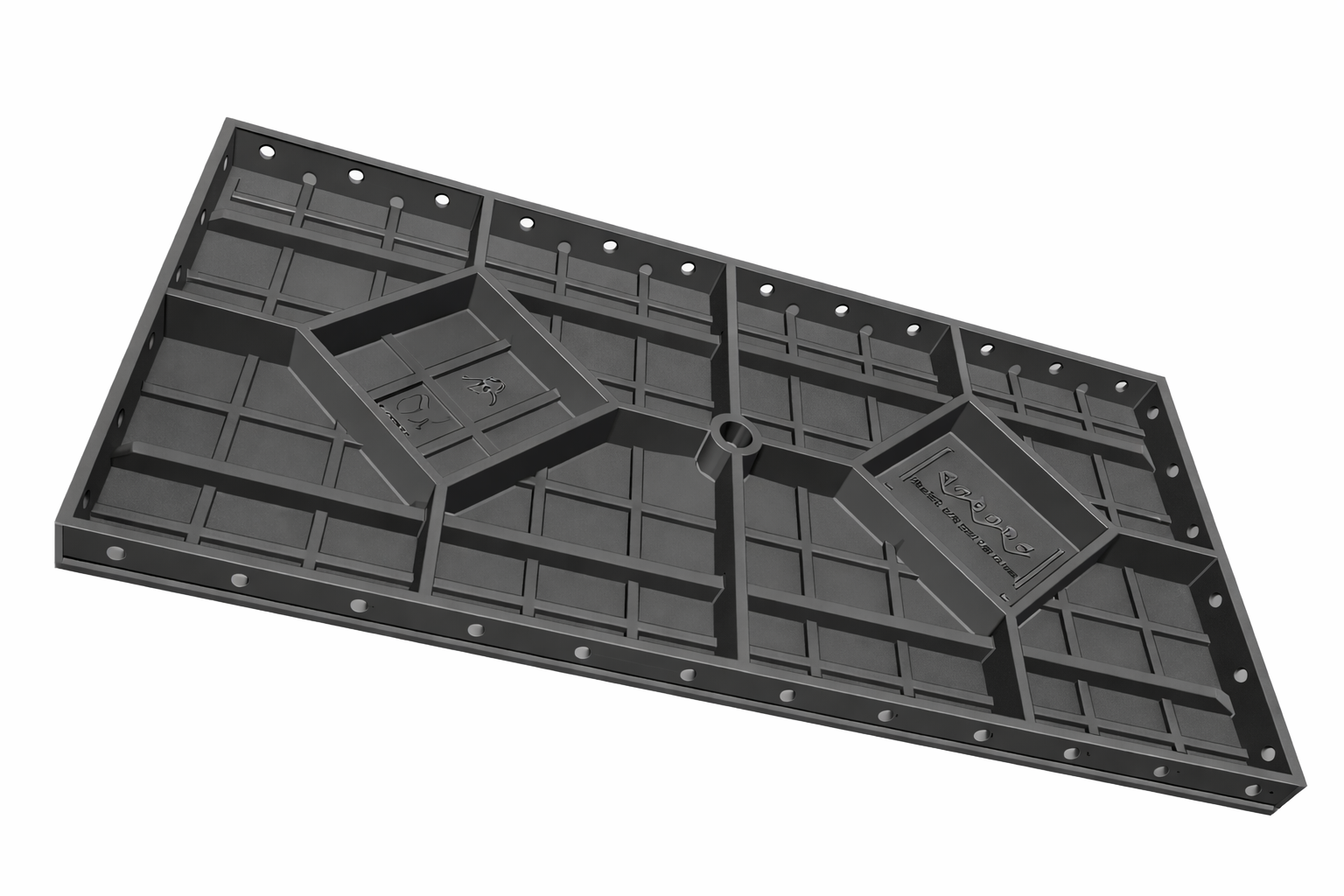

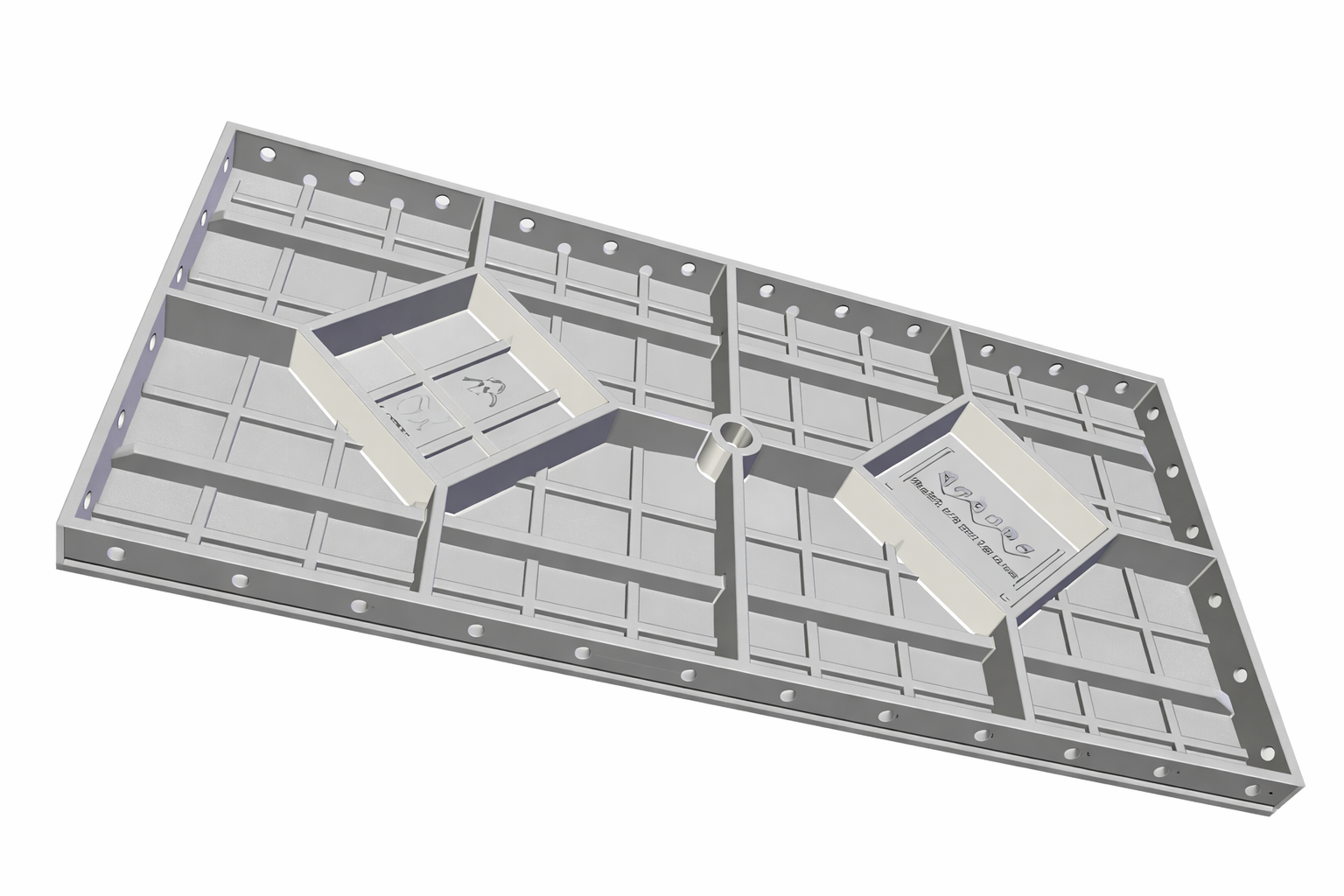

MODEPO is a modular liquid storage system designed for the safe and reliable storage of water. It is manufactured from high chemical-resistance polypropylene (PP), ensuring long service life even under demanding industrial conditions. The system is constructed by assembling polypropylene modules measuring 50 × 100 cm, allowing flexible configuration according to project requirements.

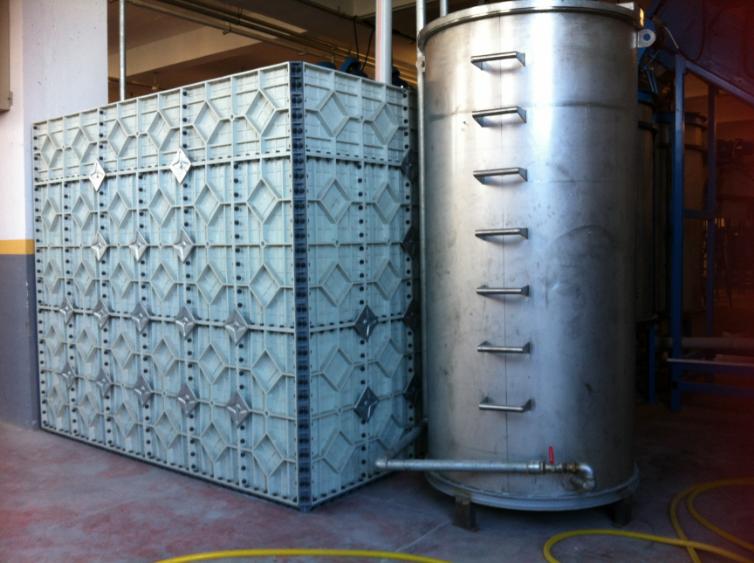

With its excellent chemical resistance, MODEPO offers a strong alternative to AISI 316 stainless steel storage tanks. It is especially ideal for confined or indoor areas where the transportation and installation of prefabricated (monoblock) tanks is impractical or impossible.

Thanks to its modular structure, on-site assembly capability, and superior durability, MODEPO provides industrial facilities with a dependable, long-lasting, and adaptable storage solution.

Installation Stages

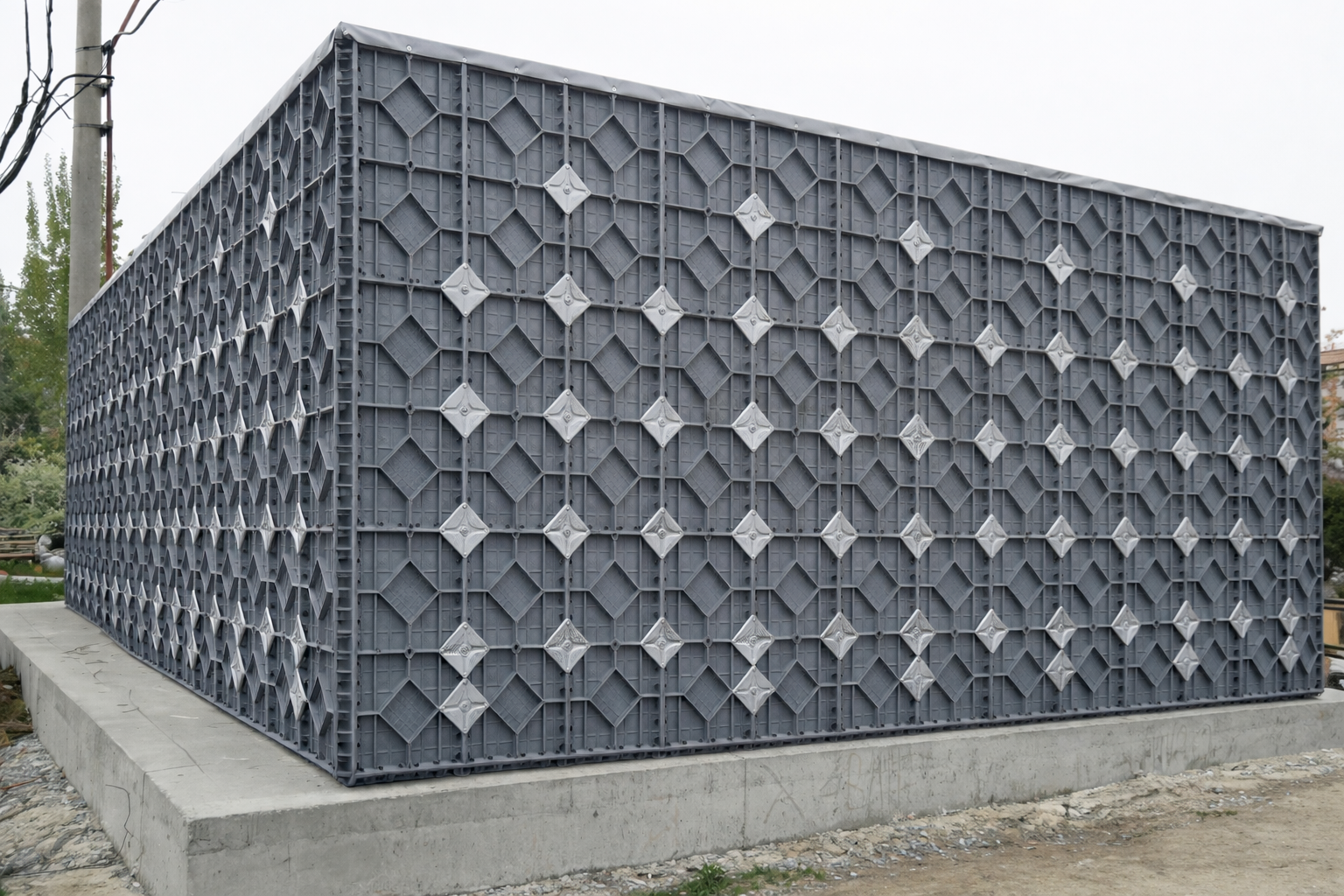

The MODEPO system is installed on a concrete platform and consists of four main steps:

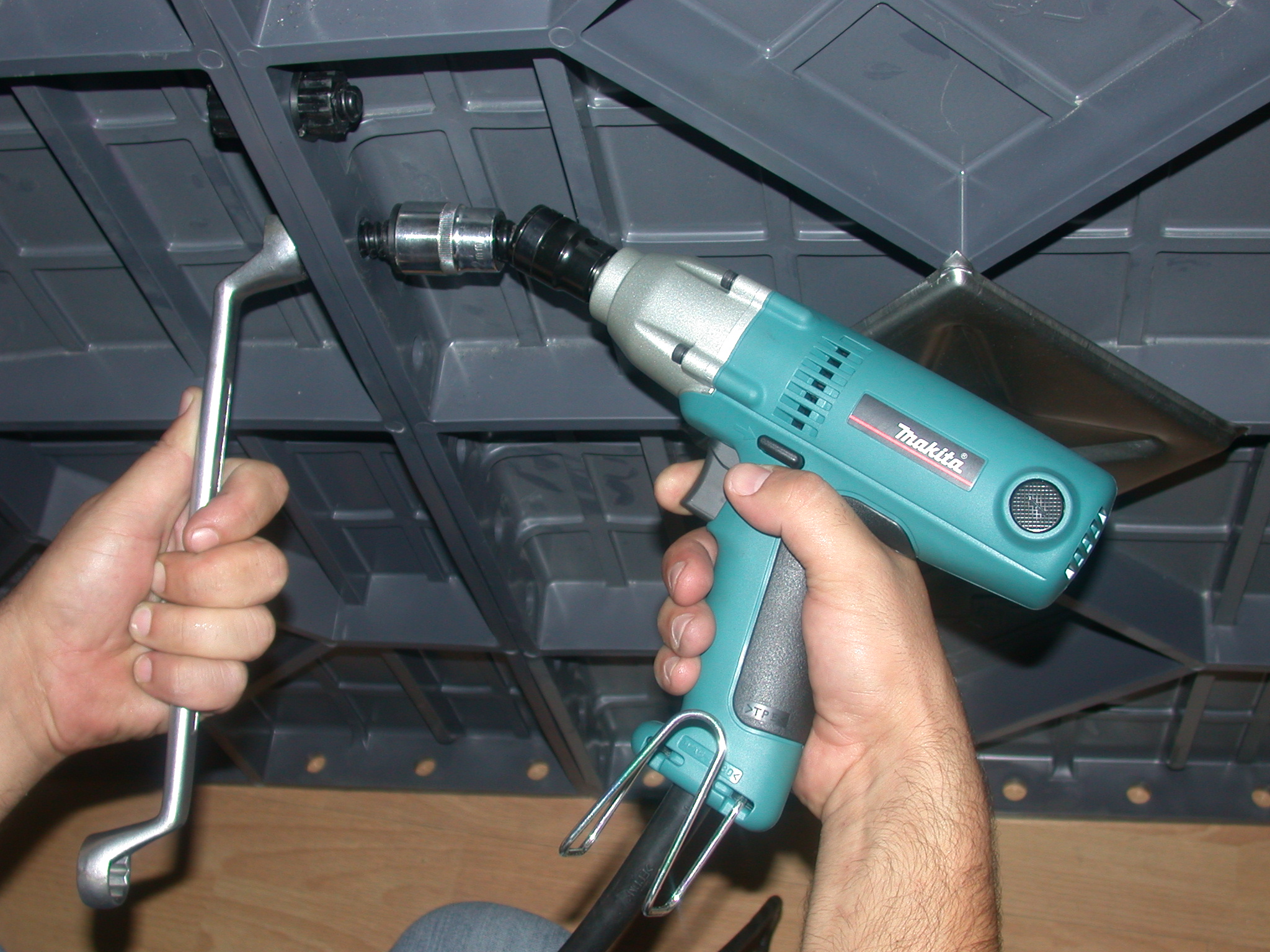

1. Assembly of modules using bolted connections

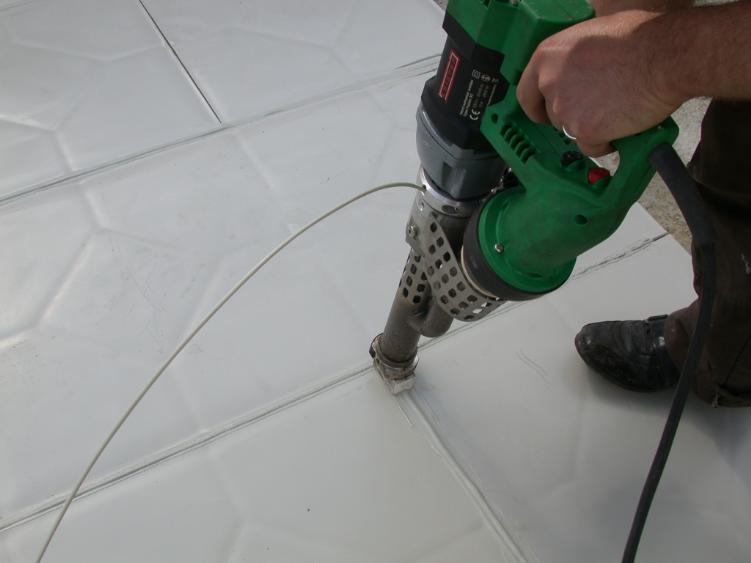

2. Ensuring leak-tightness at joint points through extrusion welding
3. Panel assembly and structural reinforcement using opposing tension elements

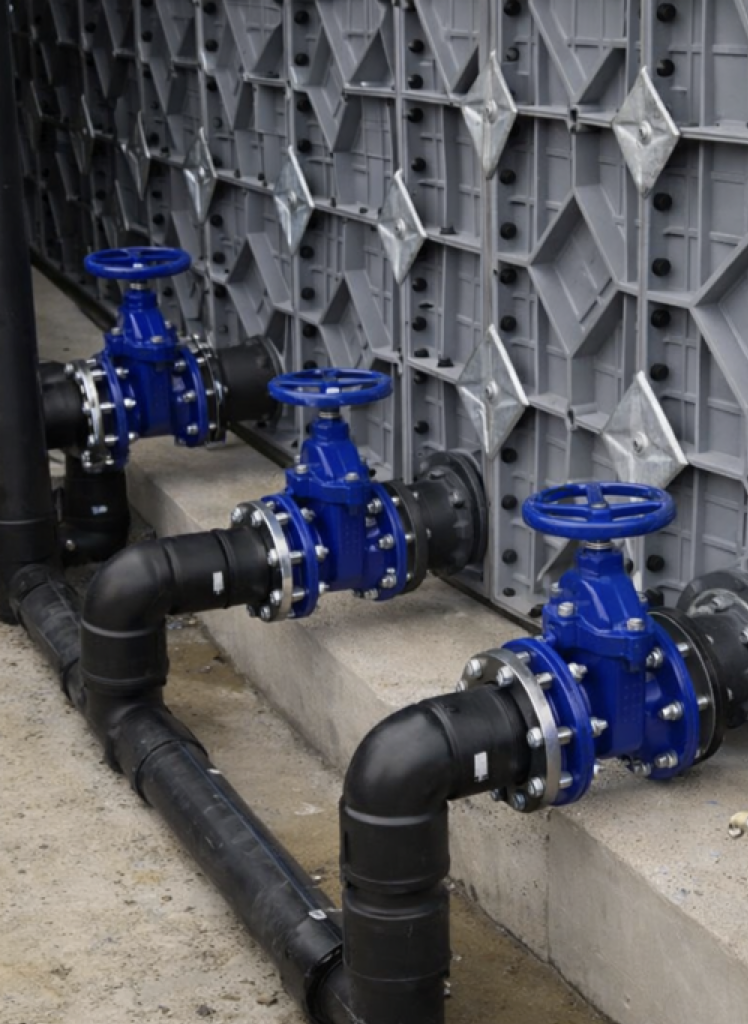

4. Completion of inlet and outlet piping connections

Thanks to its modular structure, installation is completed quickly and efficiently on-site under controlled conditions.

Application Areas

• Swimming pool balance tanks (due to high chlorine resistance)
• Potable water storage tanks (migration test report available)
• Various industrial storage applications
• Wastewater and water treatment plants
• Plating and acid bath tanks
• Cooling water storage
• Irrigation water storage
• Firefighting water tanks
• Chemical storage
• Saltwater storage
