DOLPHIN SERIES CHEMICAL TREATMENT SYSTEM

Compact, Energy-Efficient Wastewater Solutions for Industrial Applications

Aveka Environmental Technologies Co. is an engineering and contracting company operating in the field of industrial wastewater treatment and water recovery. With extensive experience, we provide sustainable and compact systems that minimize operating costs and environmental impact.

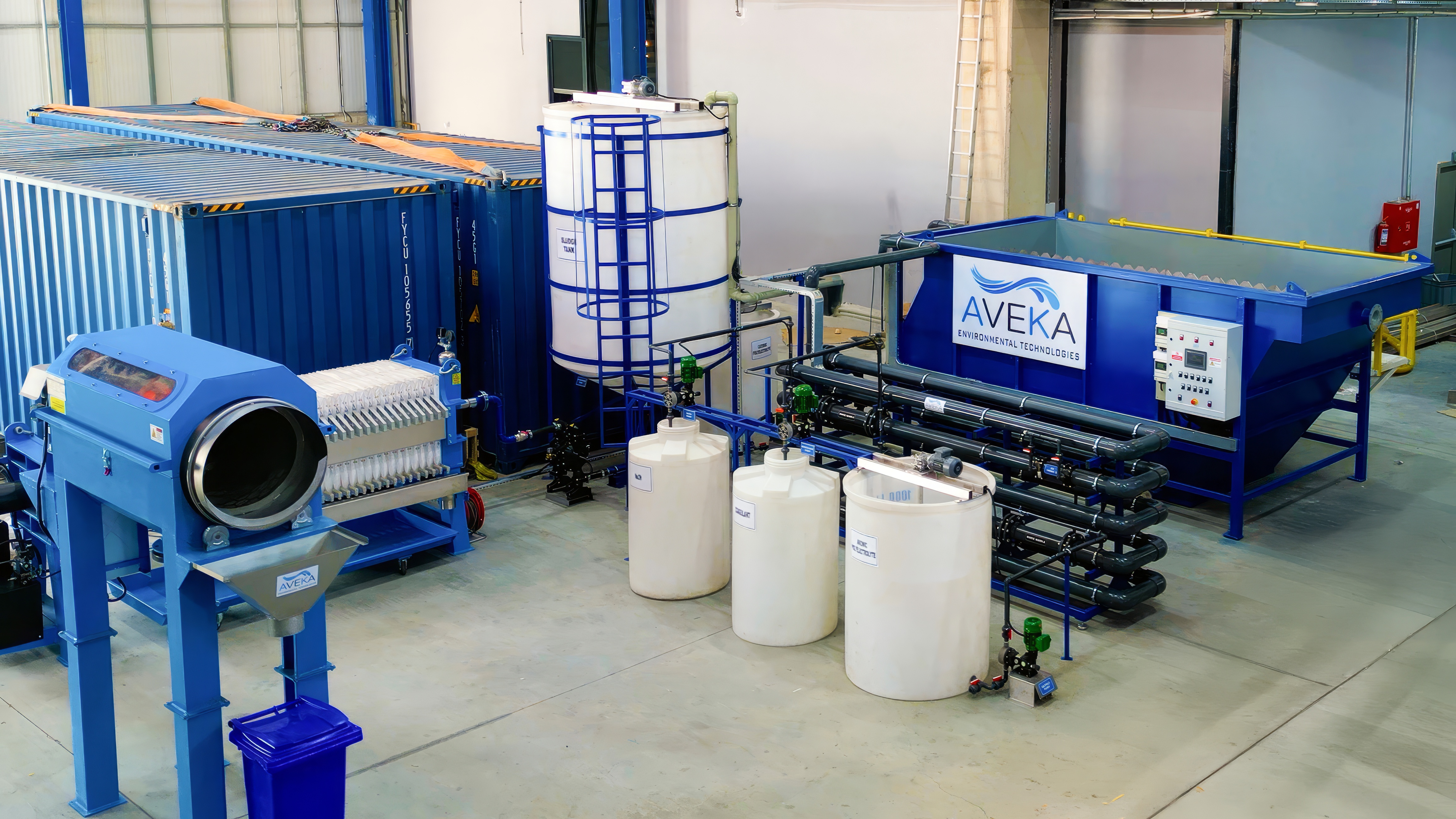

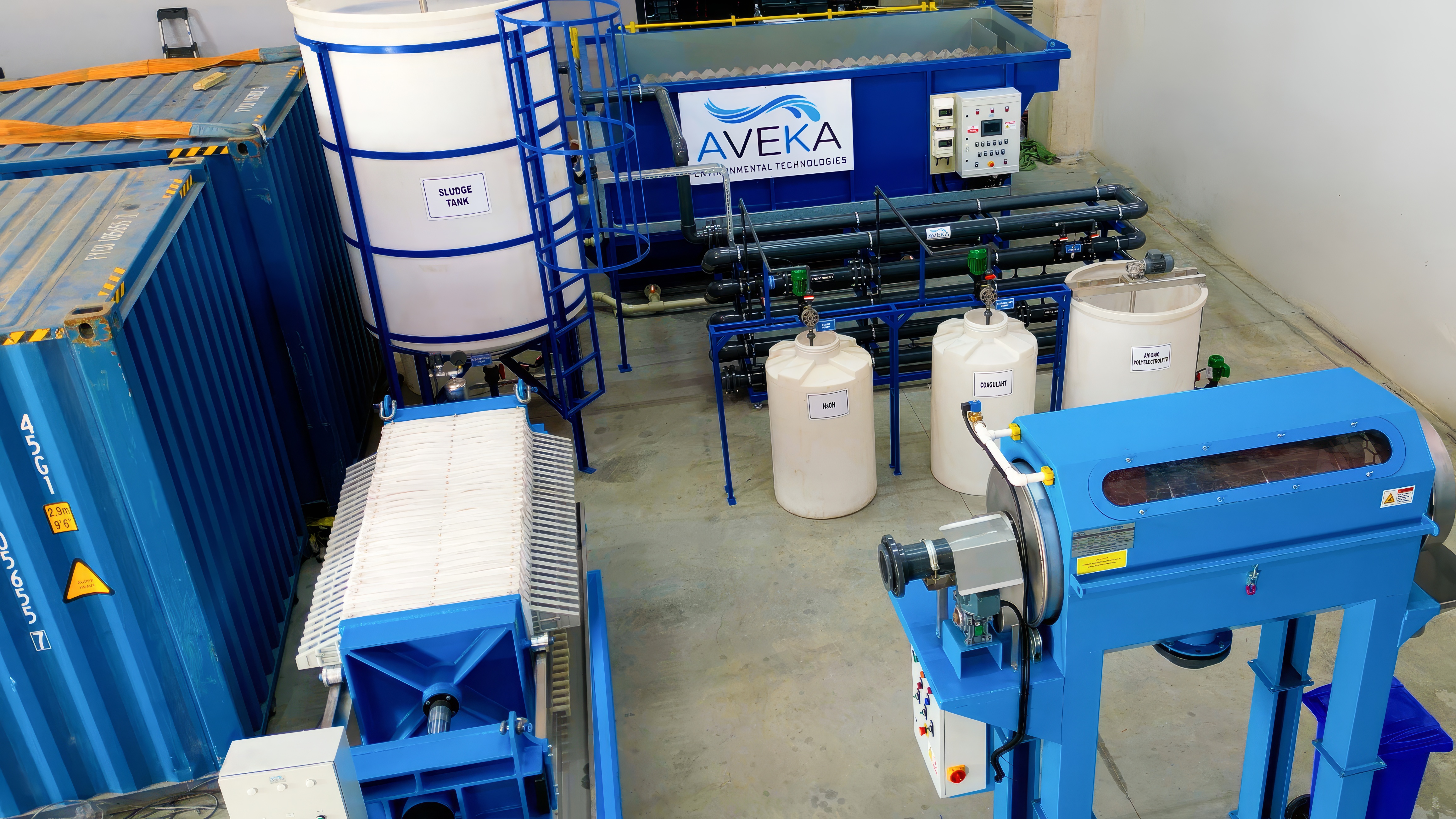

The Dolphin Series offers a high-performance chemical treatment system engineered to deliver stable, efficient, and sustainable wastewater treatment for industrial applications. Its compact structure allows seamless
integration into both new and existing facilities.

Model	Flowrate	Daily Flow	Required Area for Assembling			Installed Power
Model	Flowrate	Daily Flow	Width	Lenght	Height	Installed Power
DOLPHIN-5	5 m2 /h	120m2 /day	420 cm	640 cm	350 cm	4,20 Kw
DOLPHIN-10	10 m2 /h	240m2 /day	420 cm	710 cm	350 cm	4,20 Kw
DOLPHIN-15	15 m2 /h	360m2 /day	520 cm	770 cm	350 cm	4,67 Kw
DOLPHIN-20	20 m2 /h	480m2 /day	520 cm	770 cm	350 cm	4,79 Kw
DOLPHIN-30	30 m2 /h	720m2 /day	520 cm	900 cm	350 cm	4,97 Kw
DOLPHIN-50	50 m2 /h	1200m2 /day	620 cm	1040 cm	350 cm	6,81 Kw
DOLPHIN-75	75m2 /h	1800m2 /day	620 cm	1300 cm	350 cm	12,38 Kw
DOLPHIN-100	100 m2 /h	2400m2 /day	620 cm	1470 cm	350 cm	15,28 Kw

Benefits

High-efficiency chemical treatment, ensuring stable discharge quality
Optimized chemical dosing based on real-time analyzer feedback
Accelerated sedimentation with lamella plate technology
Compact footprint suitable for limited space installation
Low maintenance requirement and long service life
Energy-efficient static mixing with no moving parts
Easy installation and quick commissioning
User-friendly HMI operation panel
Customized design

Industry Applications

Food § Beverage
Home Appliances
Plastic Recycling
Pharmaceutical
Automotive
Chemicals
Textile

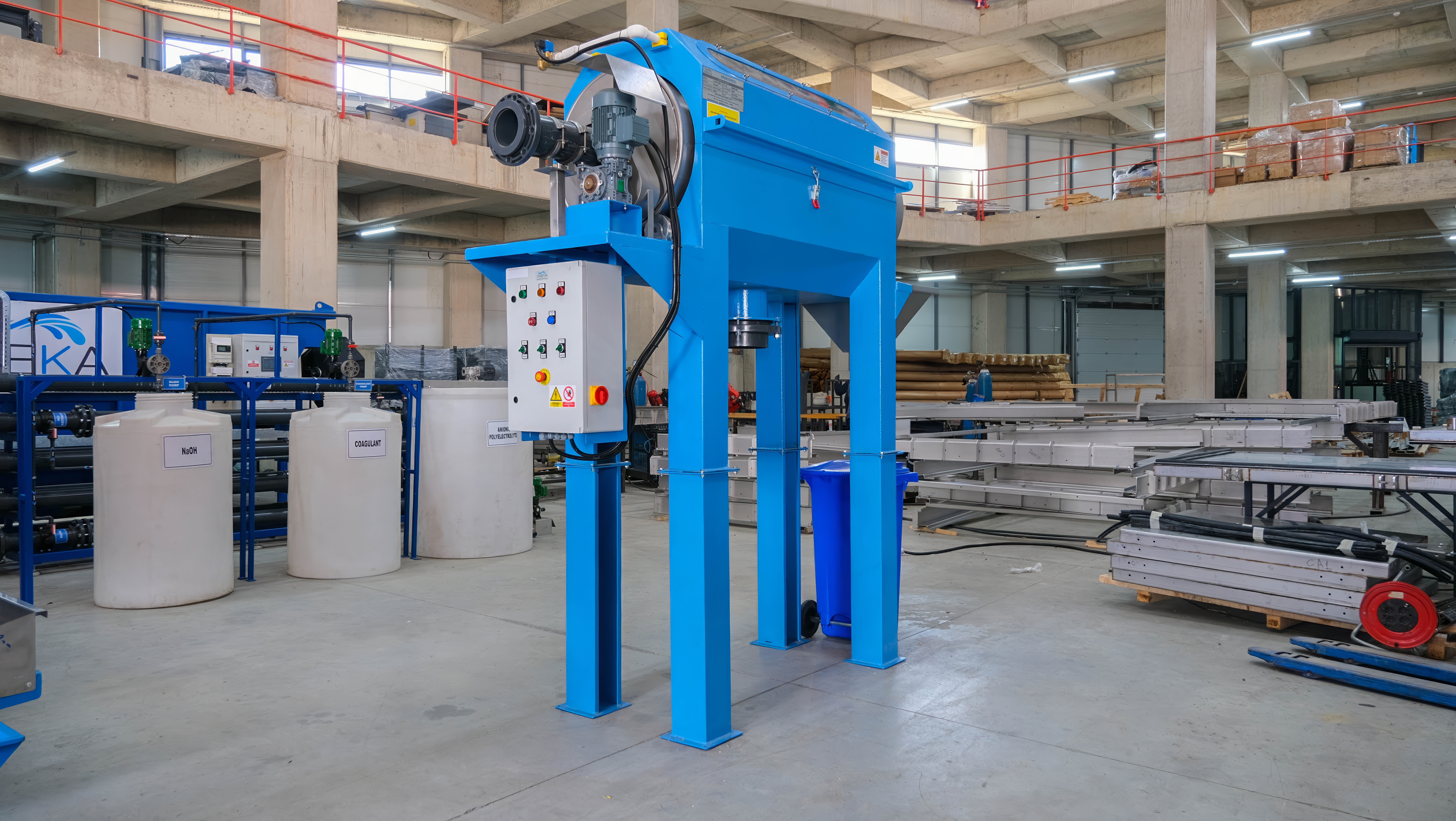

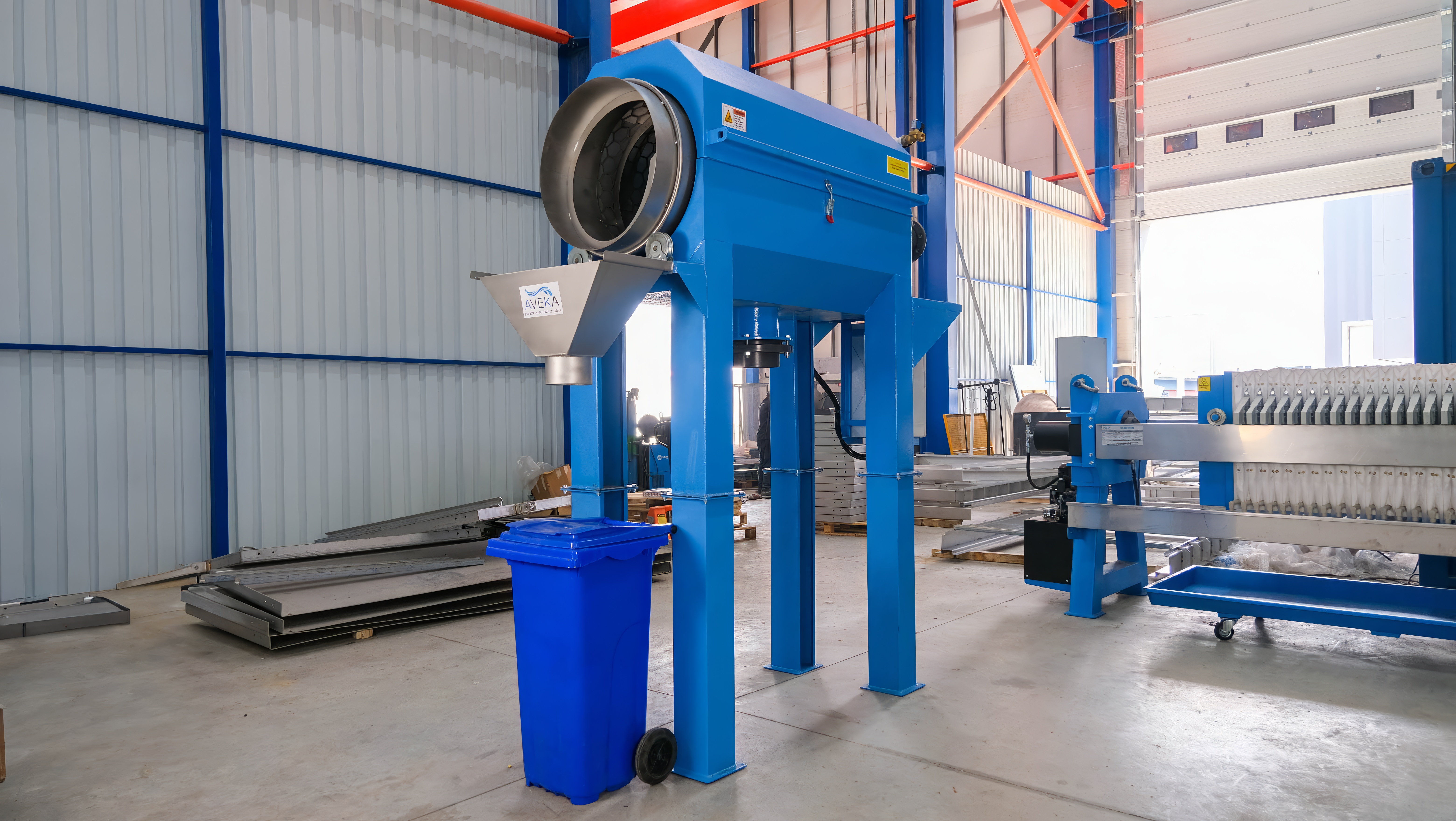

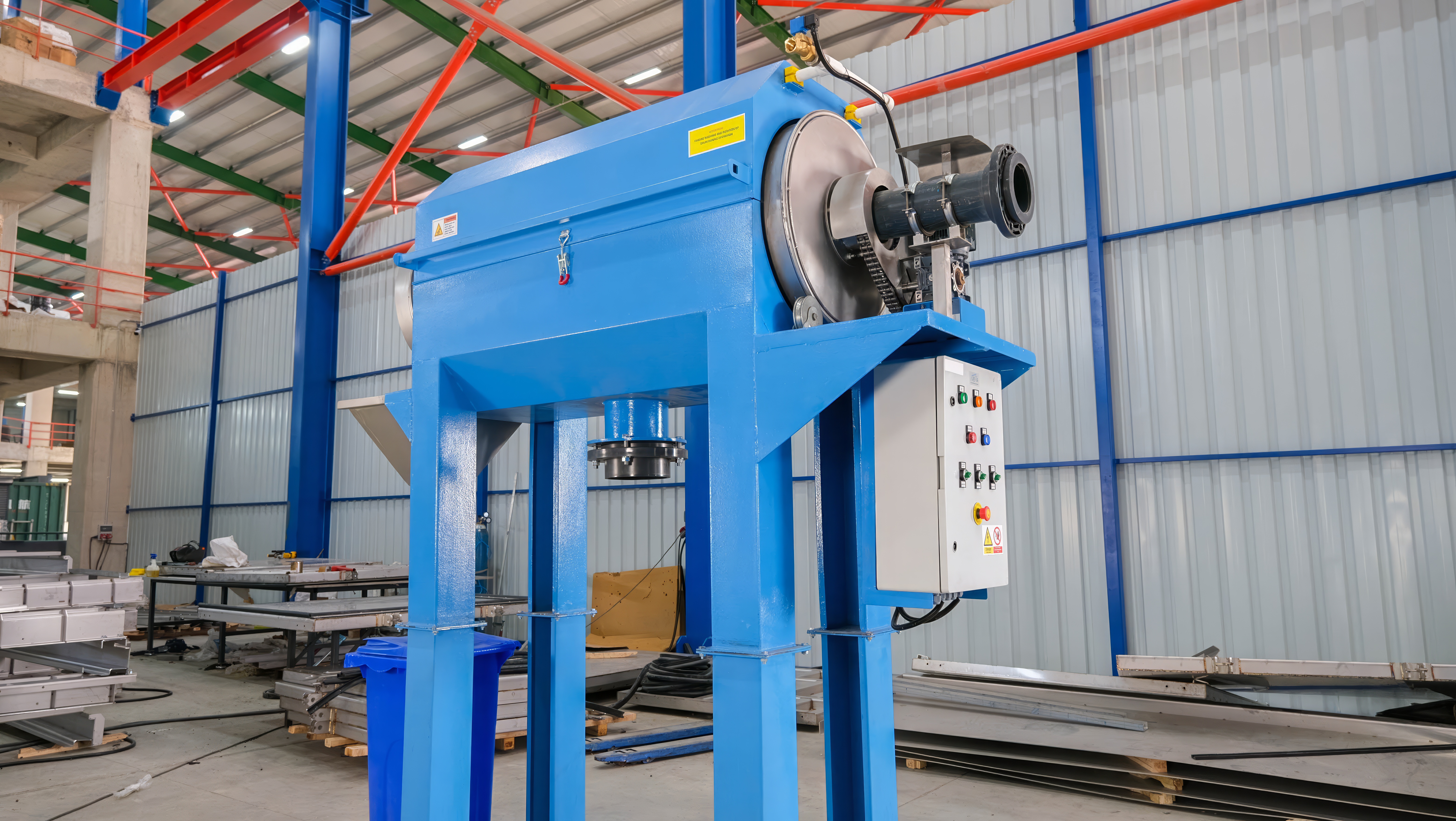

Drum Screen
Fully automatic fine screen removes solid particles sized up to 300 micron available in multiple mesh sizes to suit
different wastewater characteristics. In the first stage of treatment process, ensures smooth operation of downstream and protect following equipments against abbracion and accumulation.

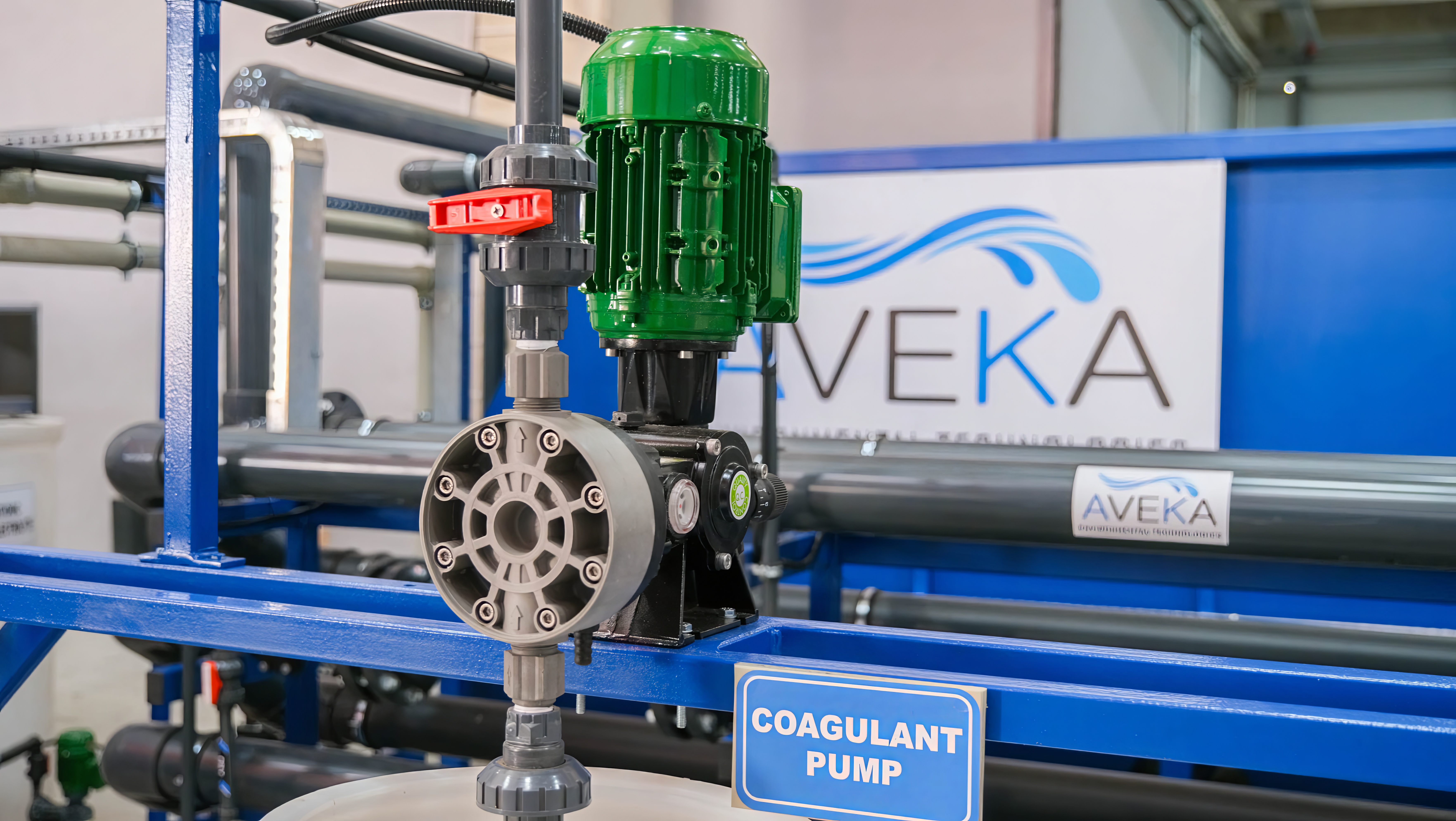

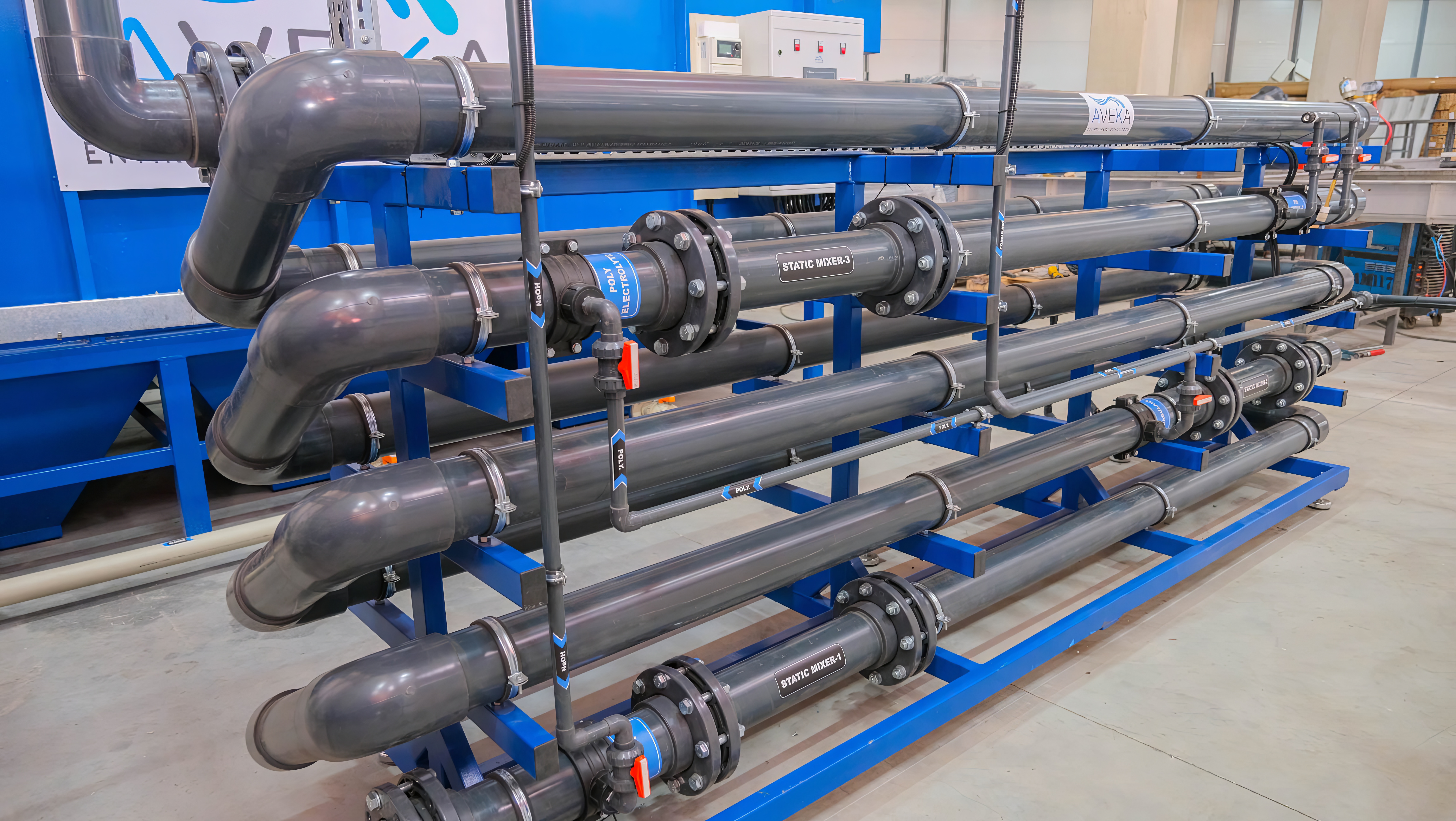

Flocculator and Chemical Dosing Unit
Utilizes static mixers for energy-free chemical reaction. There is no moving parts and minimal maintenance. Automatically adjusts chemical dosing based on real-time analyzer data for consistent and optimized performance.optimizing consumption and ensuring operational ease.

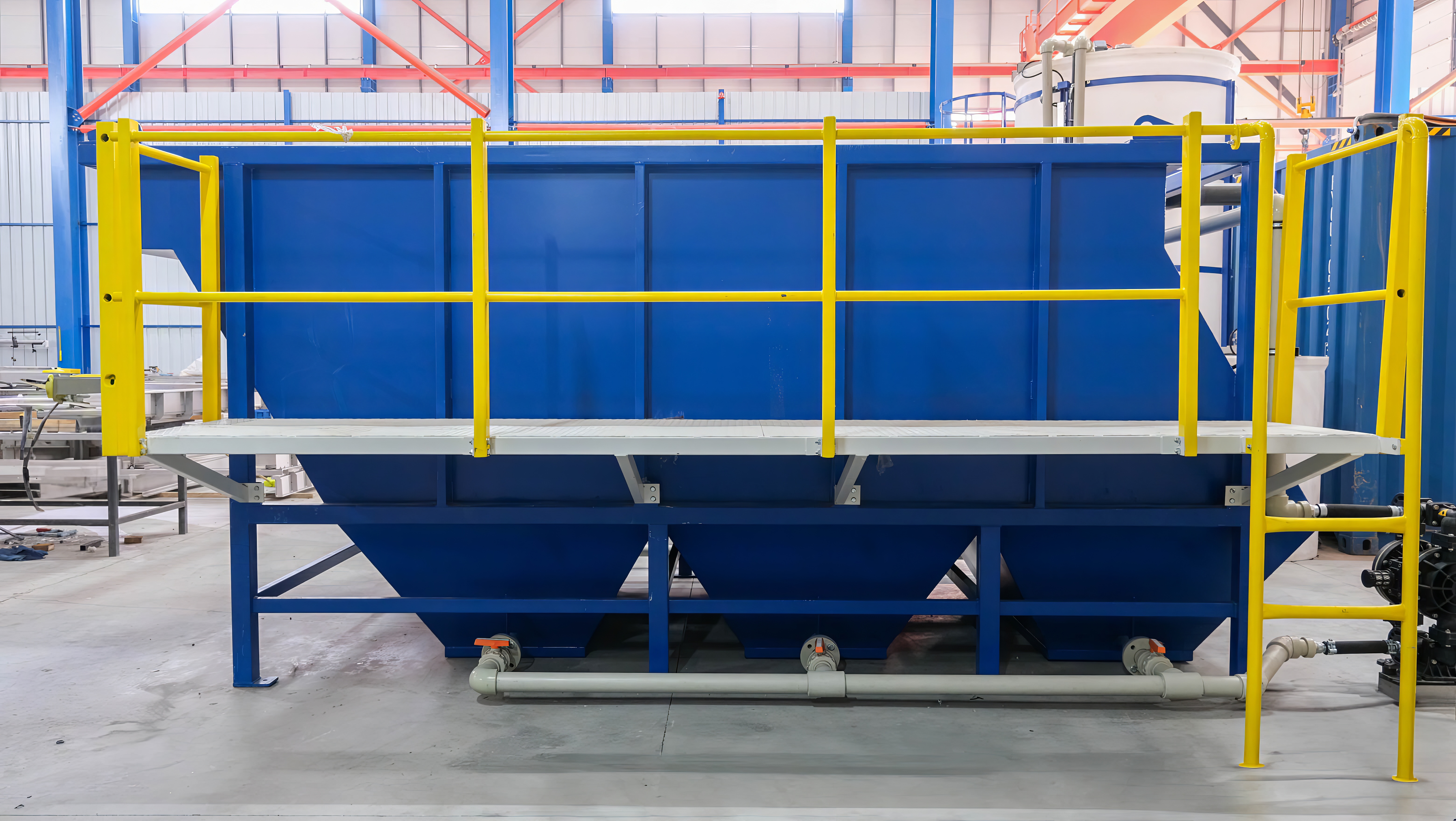

⁠ Lamella Settling Tank

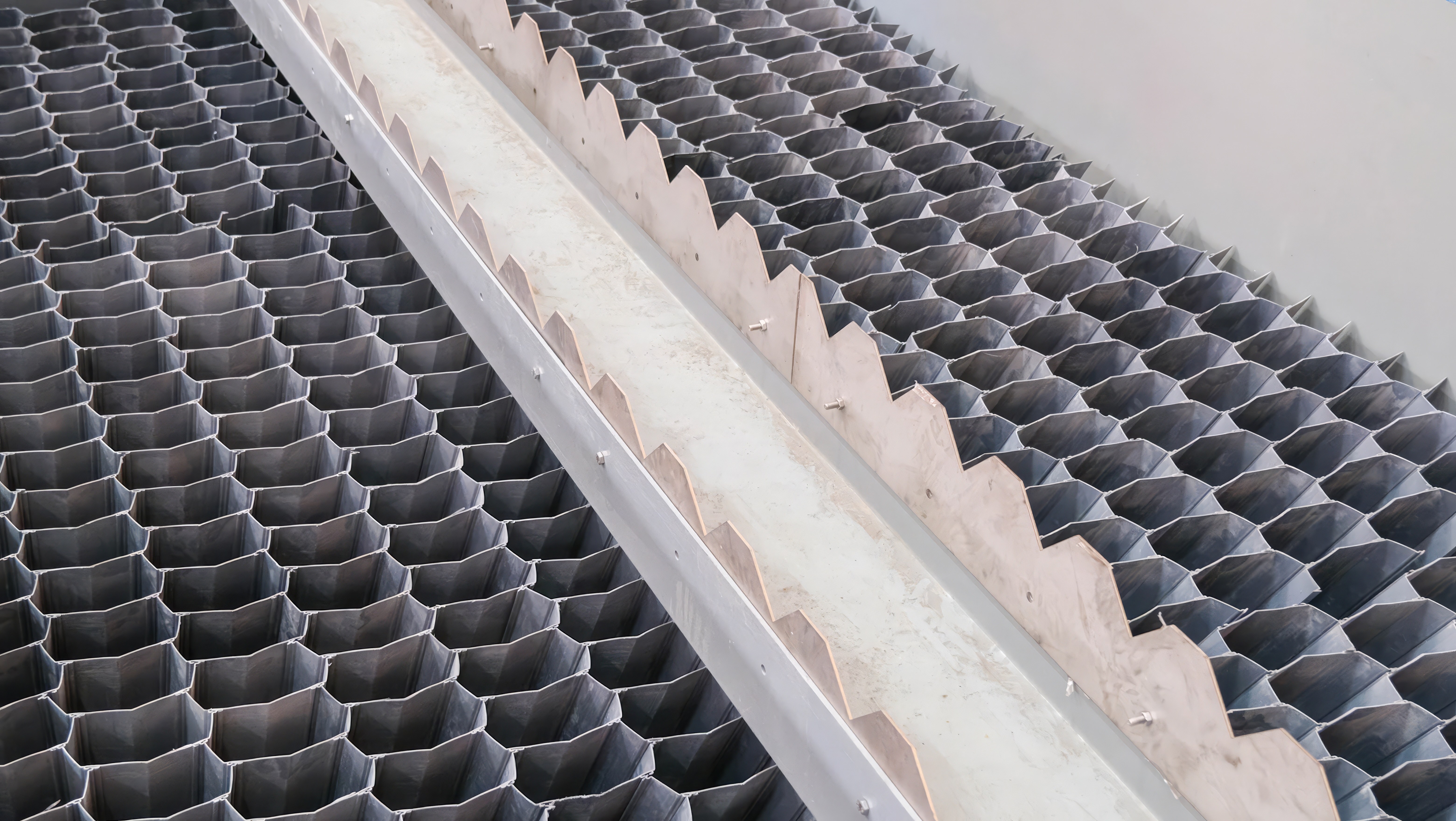

The integrated lamella plates significantly increase the surface area, enabling faster and more efficient sedimentation. This high-efficiency design ensures stable operation, reduced space requirements, and consistently reliable treatment performance. The sludge naturally settles to the bottom, while clean, clarified water smoothly sluiced from the top.

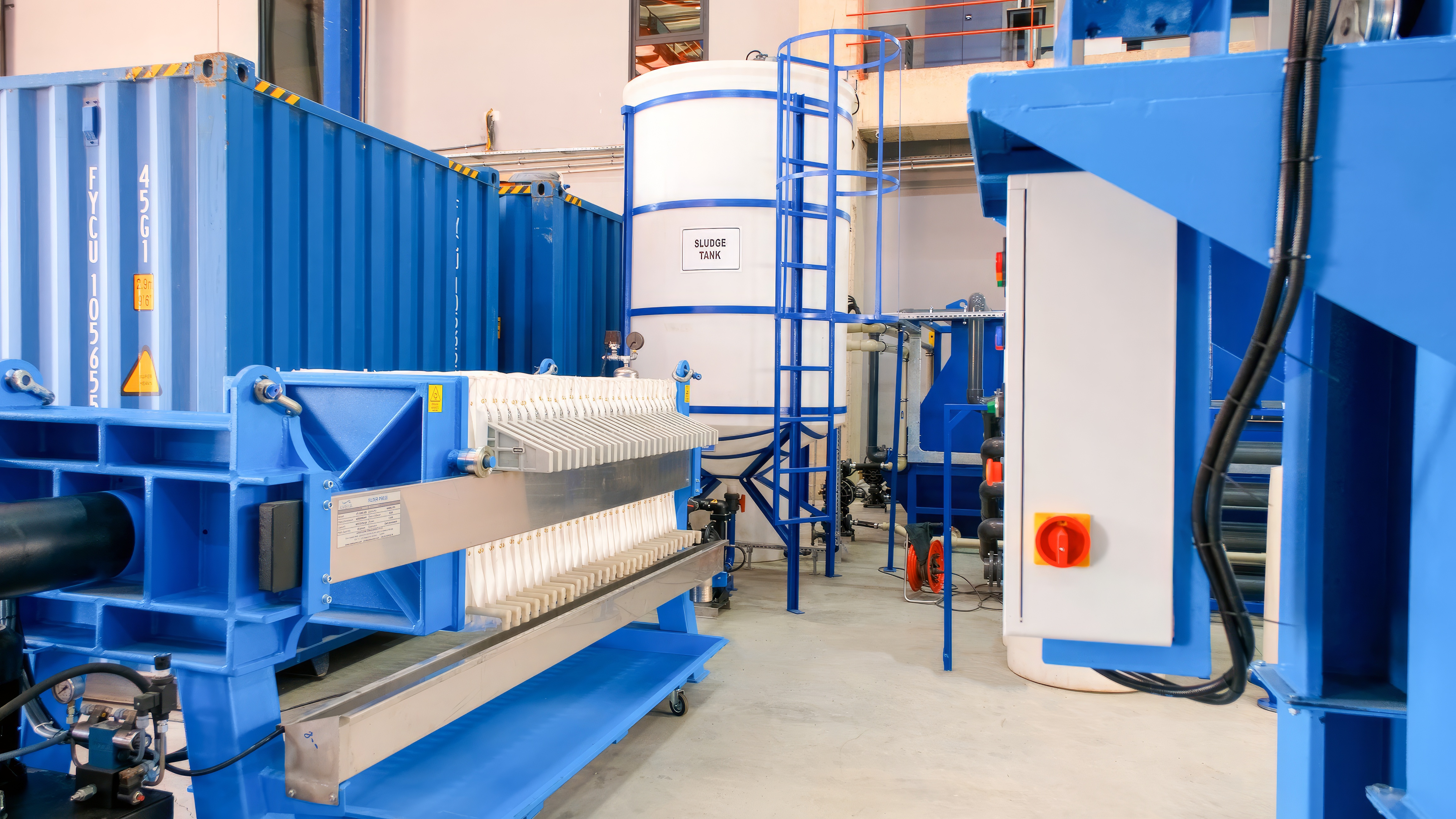

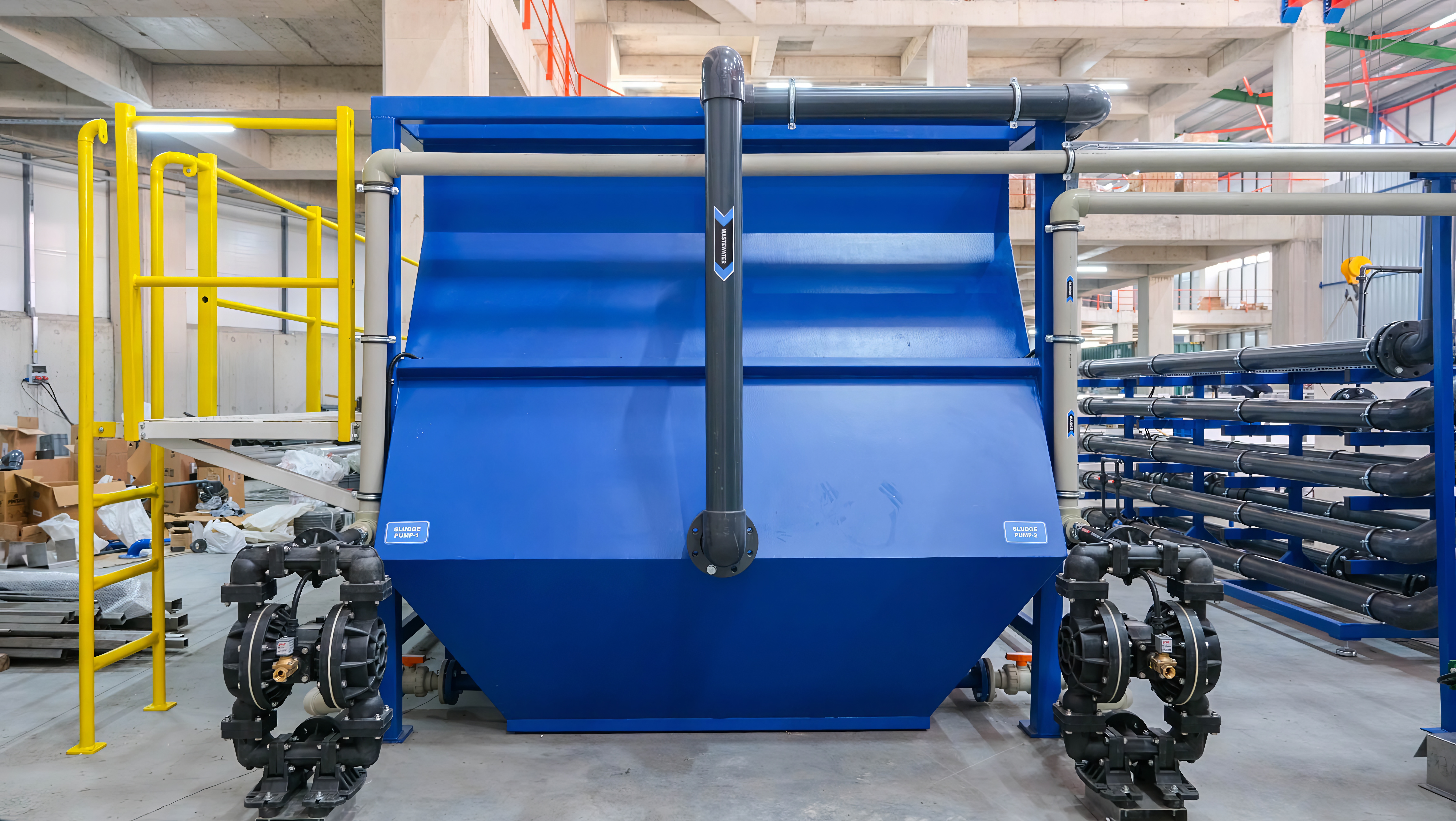

Sludge Processing
Thickening and polymer conditioning followed by high-efficiency filter press dewatering to minimize sludge volume, reduce transport and disposal cost.

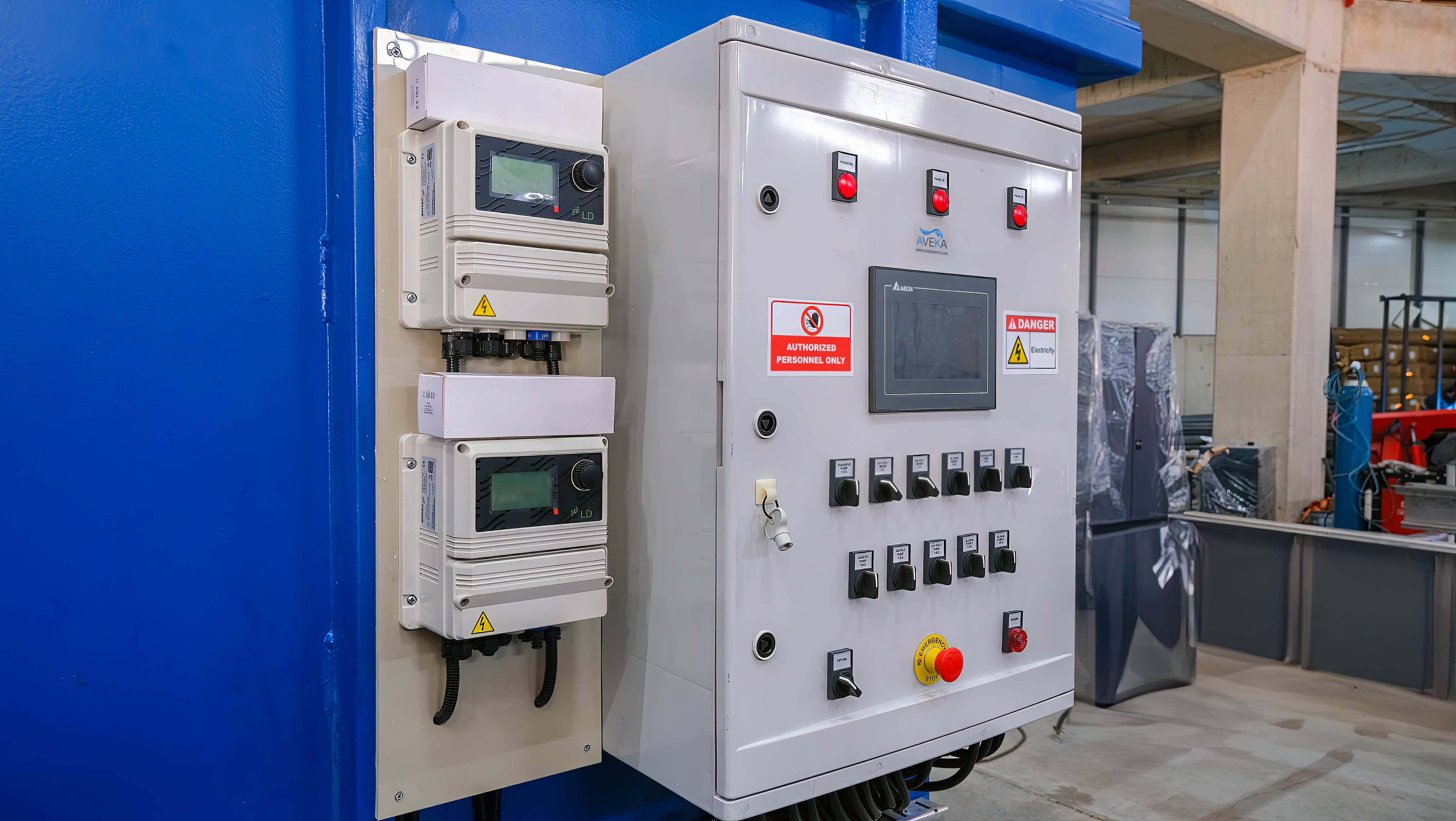

Main Control Panel

The system is managed through an HMI screen with data logging capabilities. Operators can easily adjust parameters, while a remote-access module enables quick service support and data retrieval.
