Micro screens are fine screening systems designed for installation at the inlet of wastewater treatment plants. Wastewater collected in the equalization tank is pumped to the micro screen unit, where efficient solid–liquid separation takes place. Depending on the selected mesh opening size, particles finer than 250 microns can be effectively removed from the wastewater. These may include textile fibers from dyeing processes, pumice residues from denim washing, plastic flakes from recycling operations, fruit peels and grape pomace from food processing, fish scales, poultry feathers, and similar fine solids.
The separated materials are not merely waste; depending on the process, they may also represent recoverable raw materials, creating additional value while protecting downstream treatment systems.
Micro screens can be manufactured in different models according to process requirements:

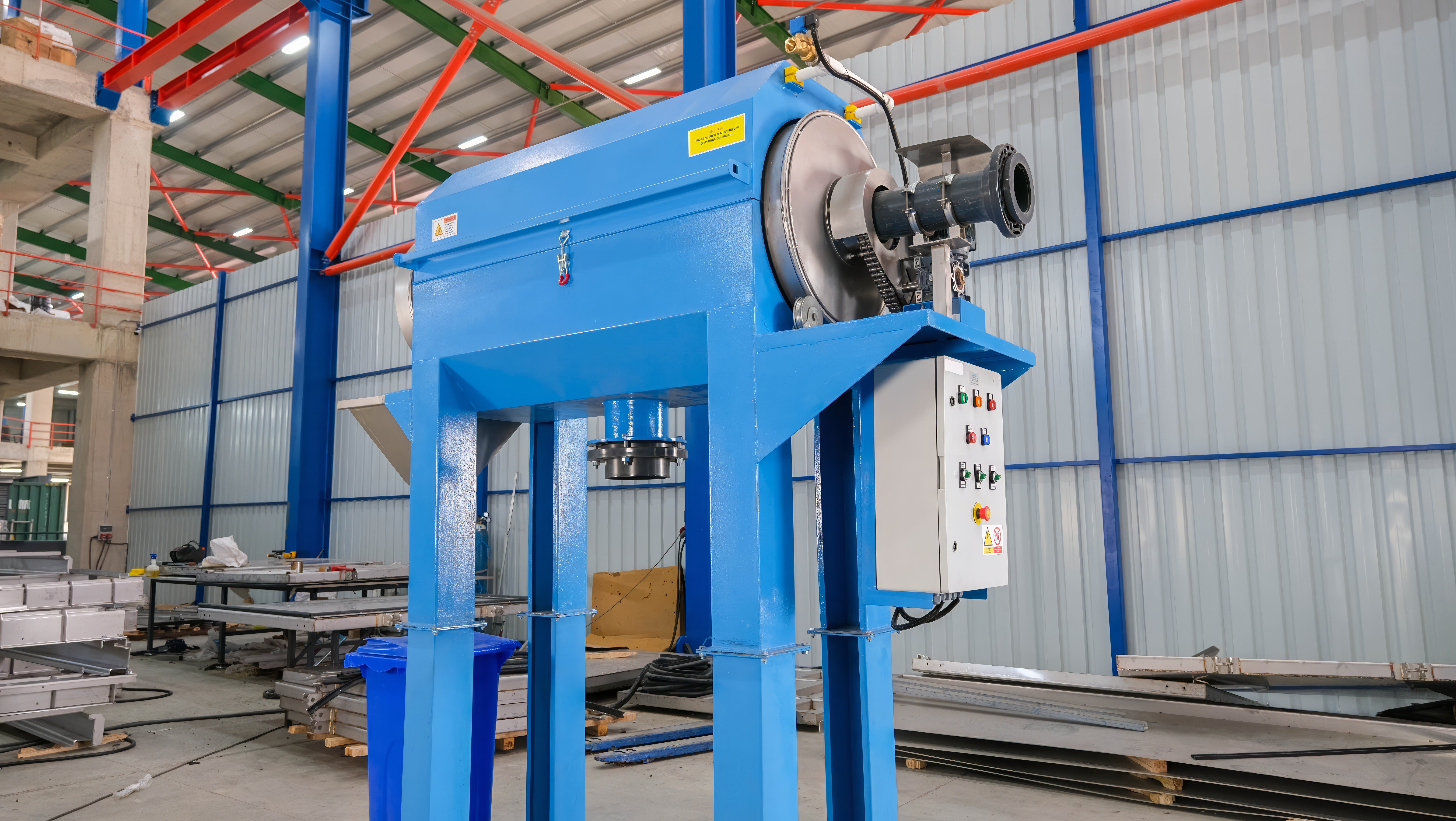

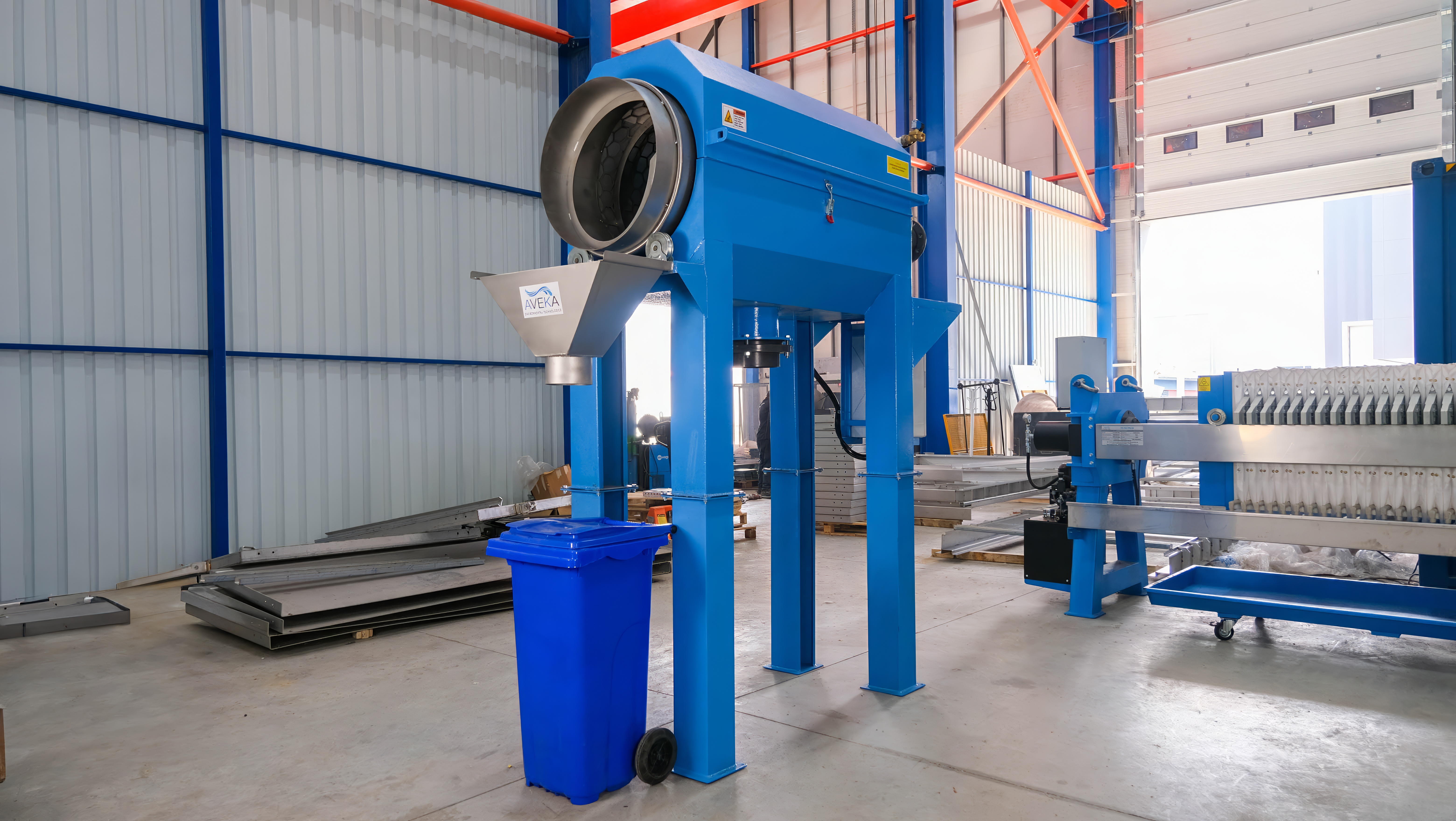

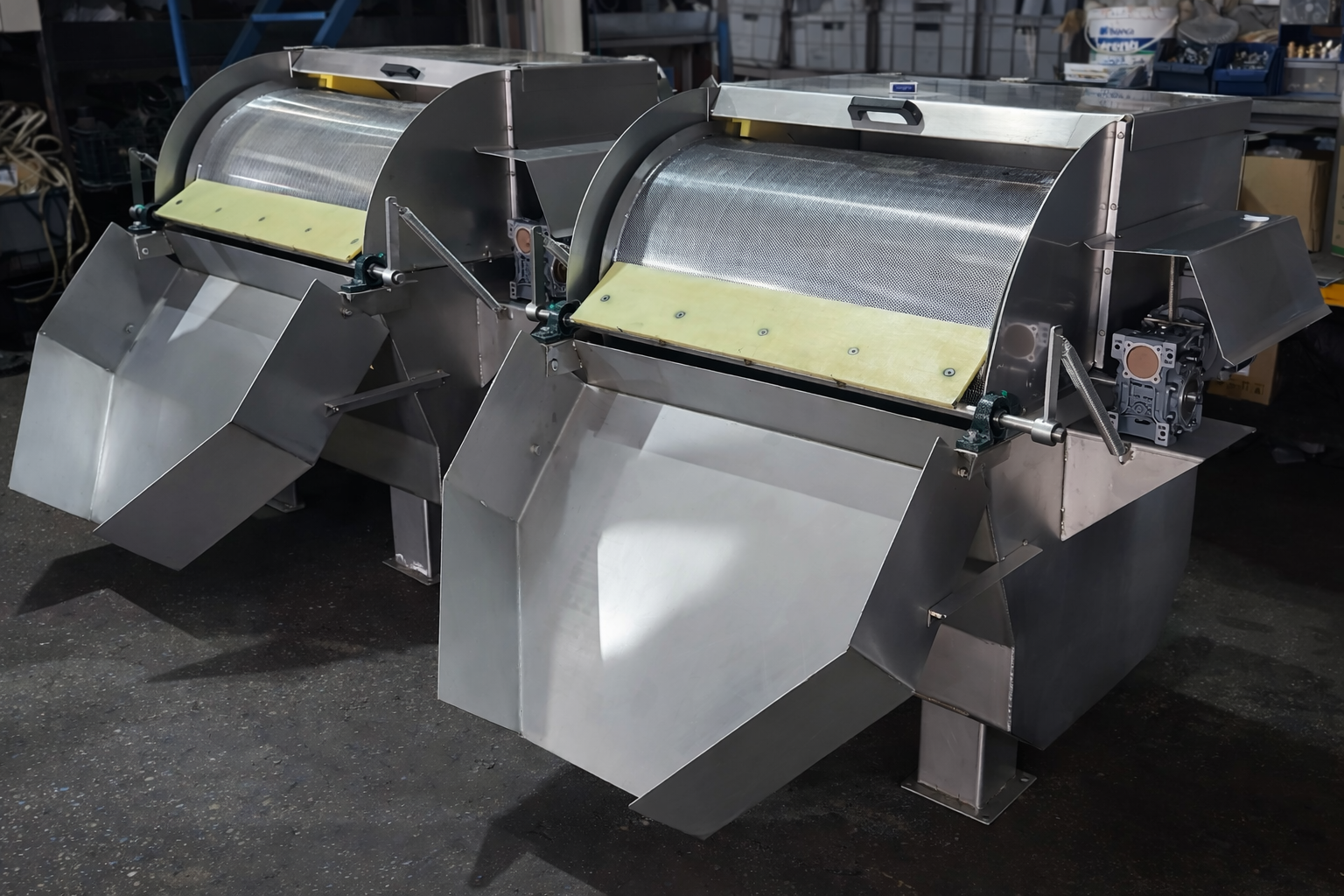

Drum Screen
Solids accumulated on the drum screen surface are automatically removed by a pressurized spray water nozzles. The rotating drum continuously self-cleans, ensuring that wastewater is always in contact with a clean screening surface. This provides uninterrupted and efficient operation.The system is supplied complete with a control panel and washing valve.

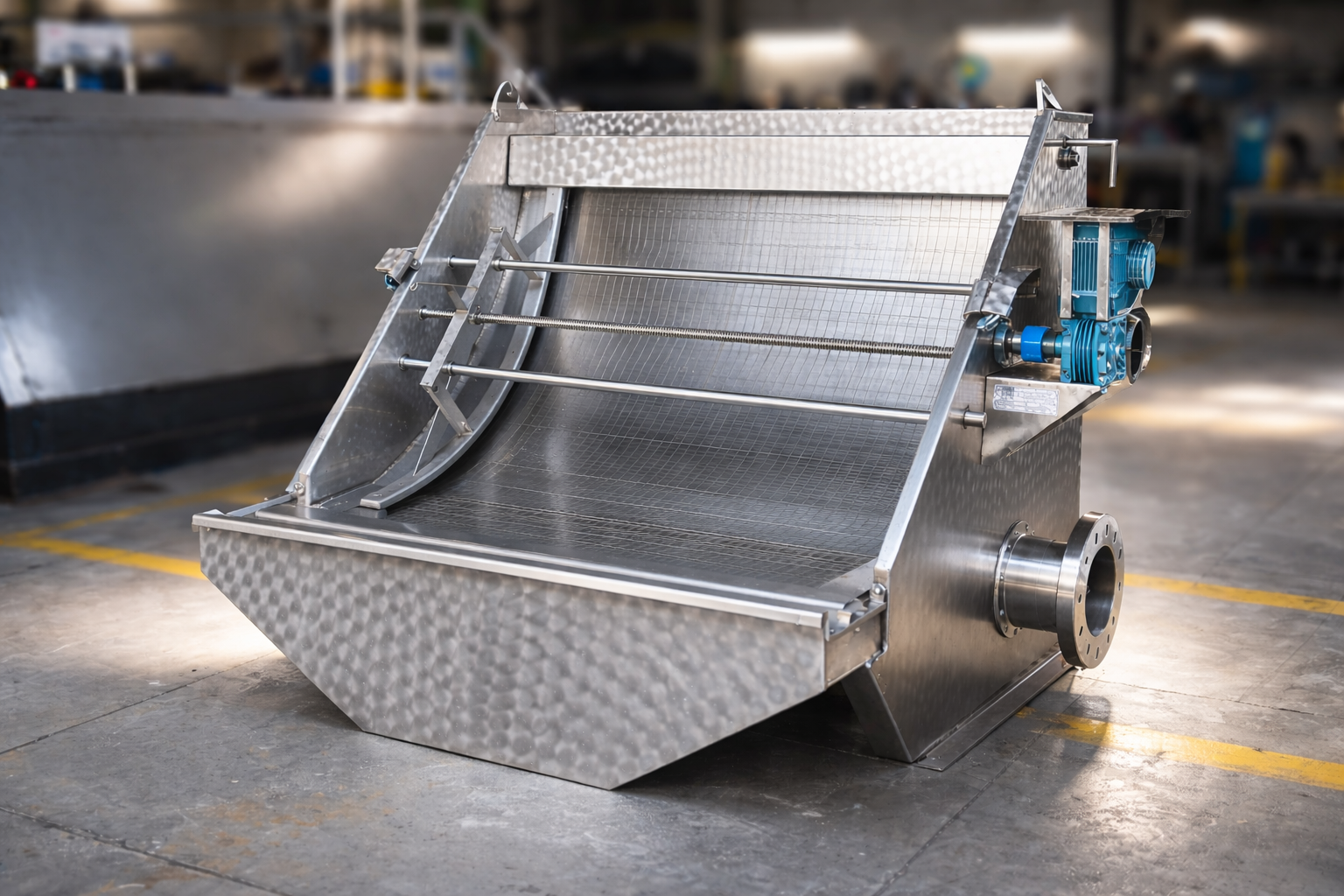

Static Screen
The static screen has no moving parts, and cleaning is performed manually. However, an optional brush cleaning system can be integrated upon request.The specially designed screen surface is structured to minimize clogging and prevent blockage.
Features
Technical Advantages
